• a single silver joist hanger timber to masonry

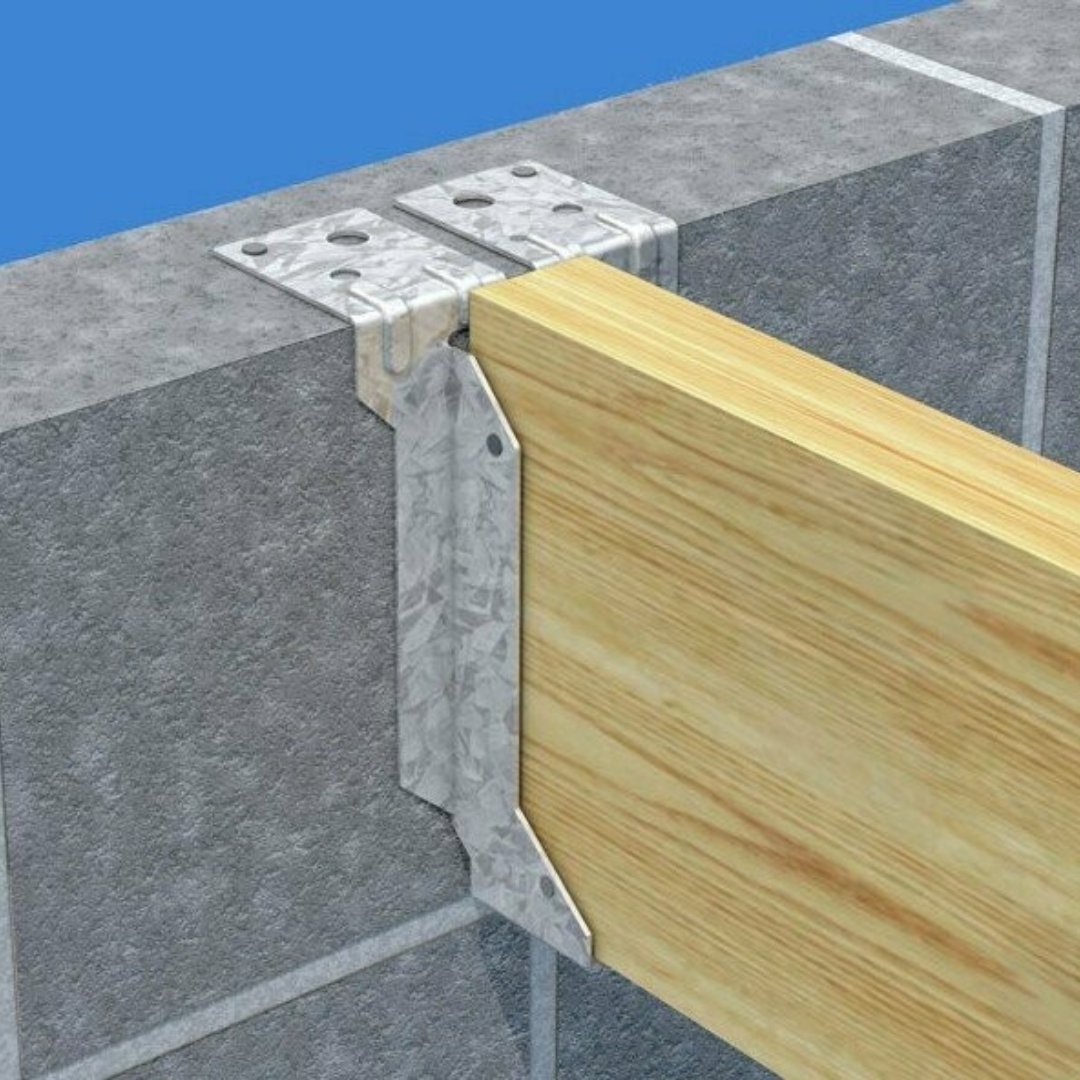

  • a joist hanger in use connecting the timber to a block wall
1 2

Straight 2 Site

Joist Hanger ( Timber to Masonry)

Joist Hanger ( Timber to Masonry)

€17,69
€17,69
Sale Sold out
Tax included. Shipping calculated at checkout.

bpc SPMH/S Single Piece Masonry Hanger

The standard Single Piece Masonry Hanger is designed for building into brickwork or blockwork.

As standard all hangers are manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346 : 2009, DX51D + G600 compliant with BS6178: Part 1:1990 and to the requirements of BS5268.

Wide top flange design offers increased loading capacity on masonry with a minimum crushing strength of 2.8N/mm2 and above. Hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists.

All hangers feature 75mm bearing surface and pre-punched side gussets to allow nail fixing into timber joists with 30 x 3.75mm sherardized square twist nails.

View full details
